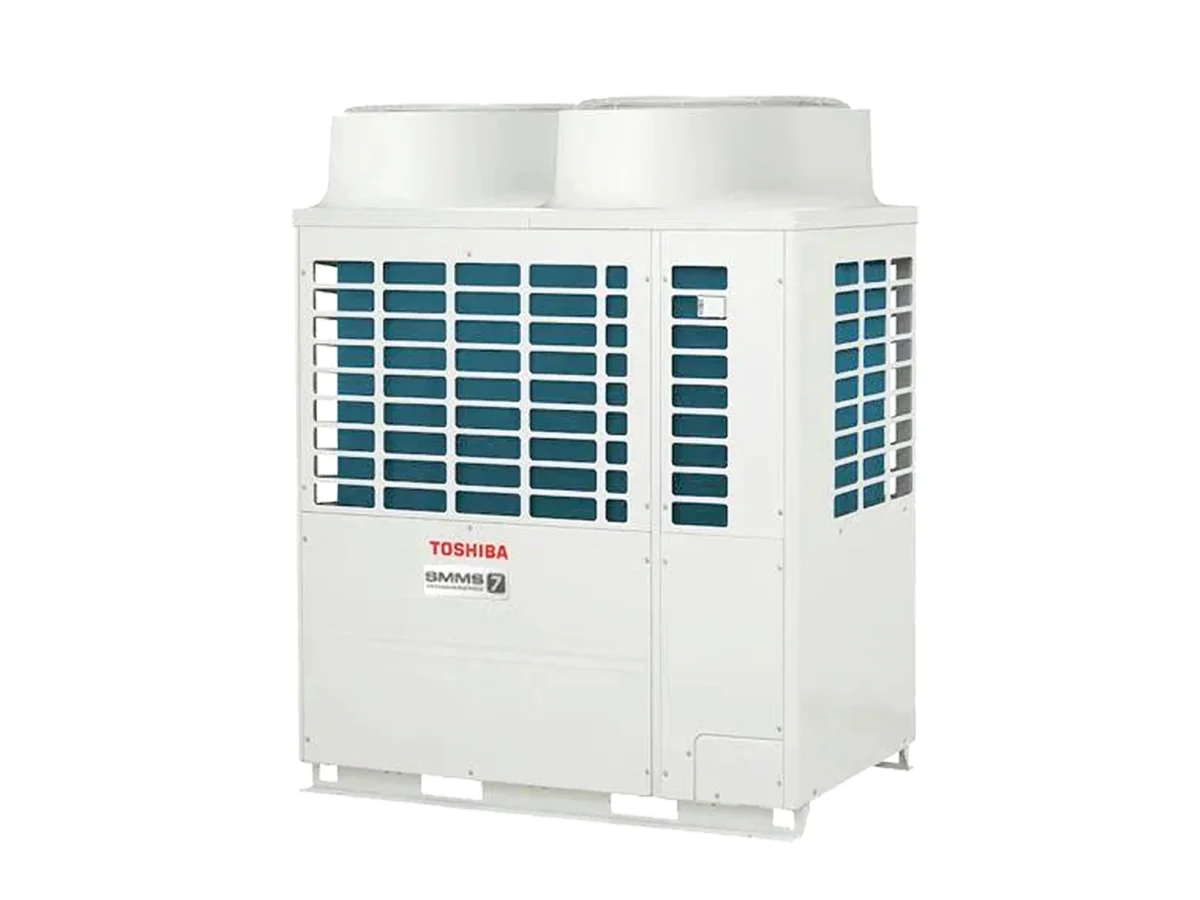

Toshiba VRF Top Discharge SMMS -7
Power-packed with the 7 Senses of Smartness, the Toshiba SMMS-7 top-discharge unit offers the ultimate efficiency for your buildings. With exceptional benefits of energy savings, ease of maintenance, versatility and much more, here’s an eco-friendly VRF that prioritizes your convenience and comfort.
7 Senses of smartness
Because we understand your real needs, we researched and finally found 7 senses of smartness in air conditioning, which we have innovatively developed into the most advanced technologies SMMS-7. This VRF is cooling optimized for hot and humid temperature.
Sense of Efficiency
- Superior energy savings with improved full and part load Energy Efficiency Ratios
- ISEER* as high as 9.05
- 2-Stage Vane for reduced friction and noise
- Redesigned four-way heat exchanger with balanced air flow on four sides of the unit
Sense of Care
SMMS Wave Tool:**
- Remote diagnostic application designed for ease of maintenance
- NFC (Near-Field Communication) technology to access system data with smartphone
- Simplified installation, testing, and commissioning process without the need to open the cabinet
Sense of Space
- Innovative compact design, significantly reducing installation footprint, delivery, and installation time
- Expanded single unit capacity up to 24 HP on one platform
- Combination upto 60 HP
Sense of Convenience
- Two tier design: Separate machine rooms for quick and easy access to key components
- Diagnostic tools for troubleshooting - Dyna doctor
- Reduced crane usage during installation
Sense of Flexibility
- Up to 200%* diversity in unit combinations to achieve comfort with lesser capacity and lower costs
- Longer piping length up to 1000 meters for diverse building designs
- Up to 18 indoor FCUs (Fan Coil Units) can be facilitated
- AHU (air handling unit) connection option for capacity range from 16 to 60 HP with airflow range from 6,000 to 30,000 CMH
Sense of Strength
- New inverter box with additional rodent, lizard etc. protection and resin sheet
- Backup operation feature in case of compressor failure
- Reliability Rotational Control for balanced compressor workload under variable conditions
Sense of Endurance
- Expanded ambient operational range of -5°C to 52°C
- DLC coated vane for enhanced durability and reduced friction
**Optional Accessory

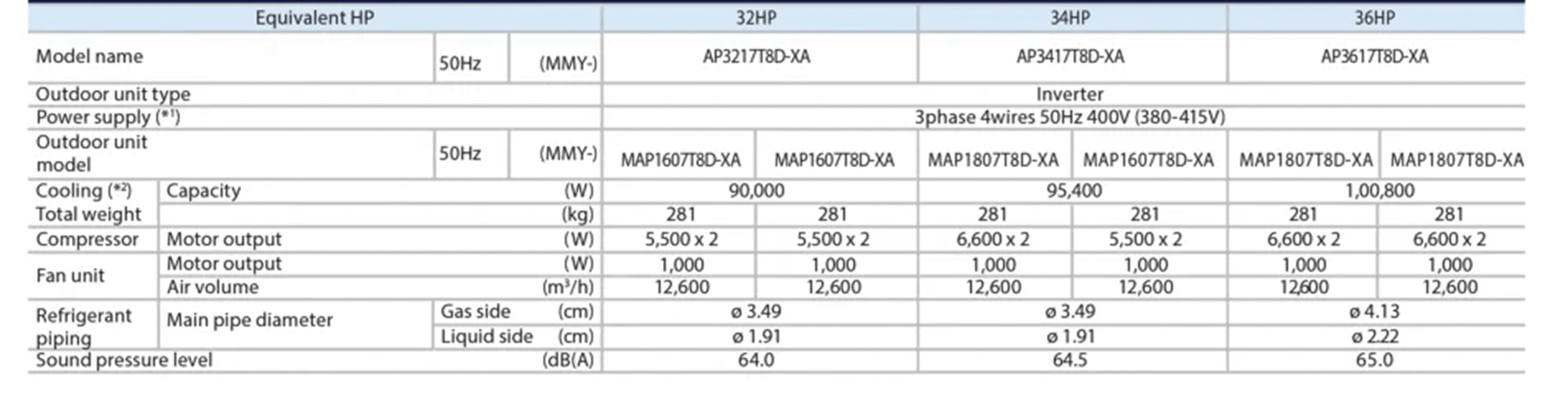

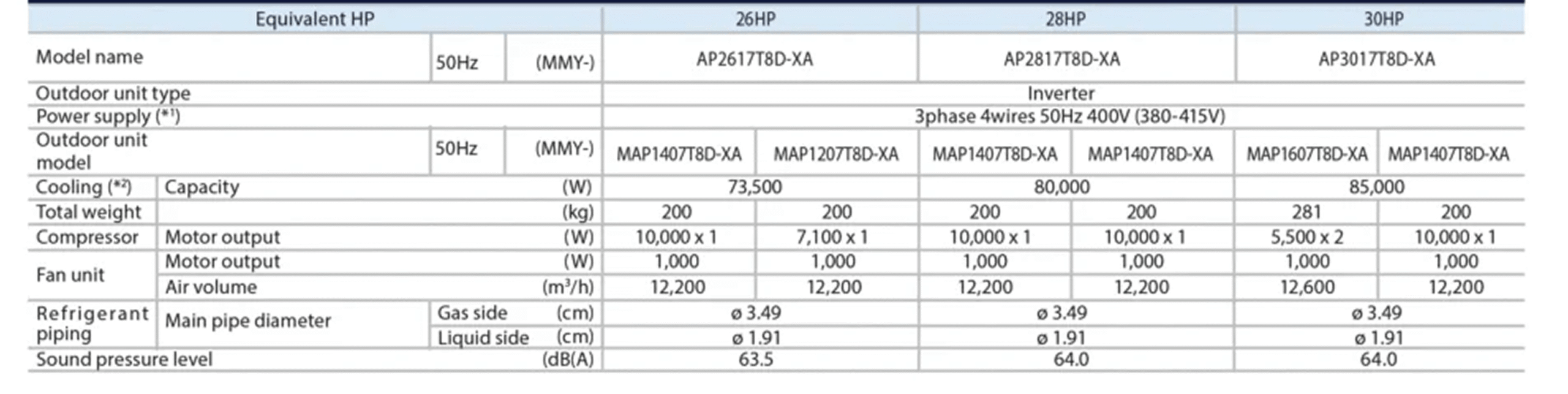

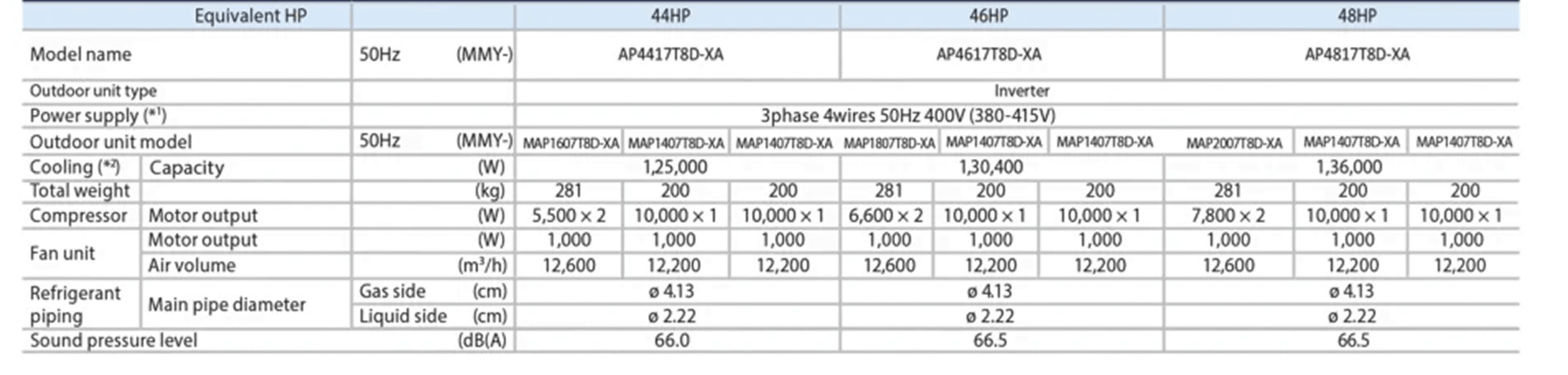

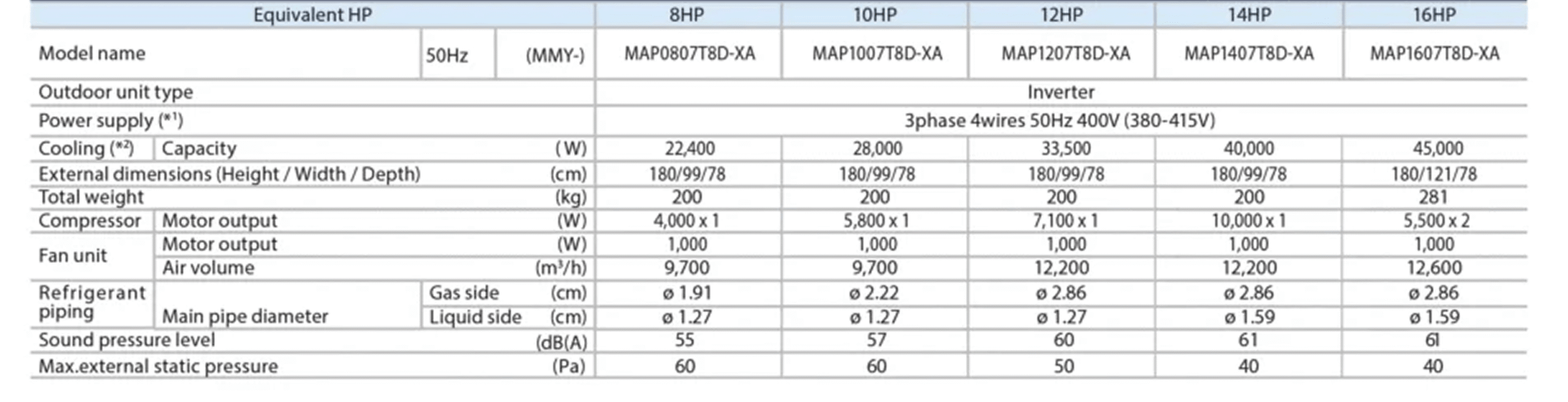

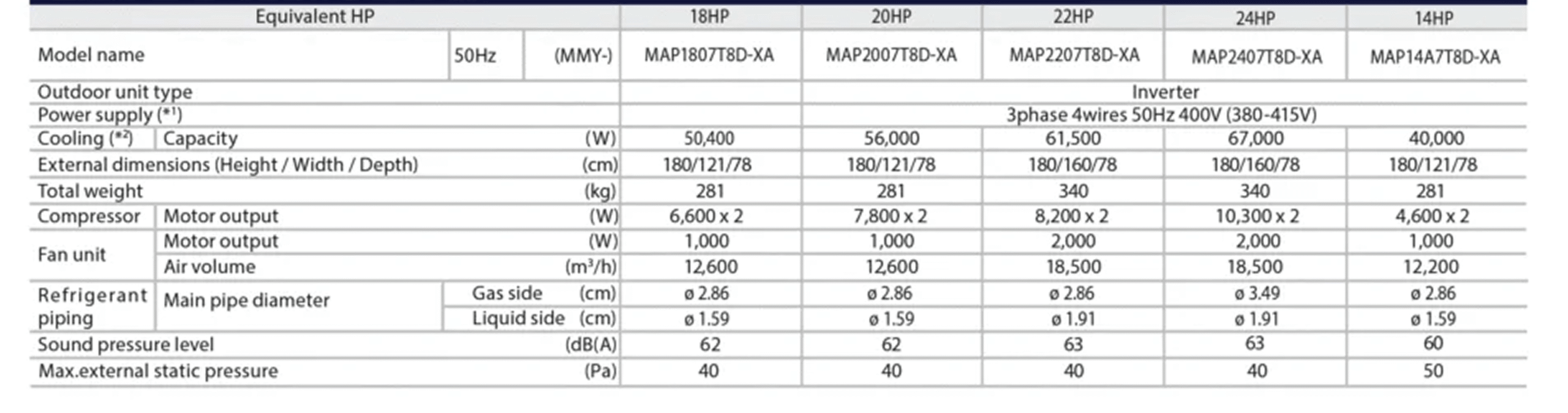

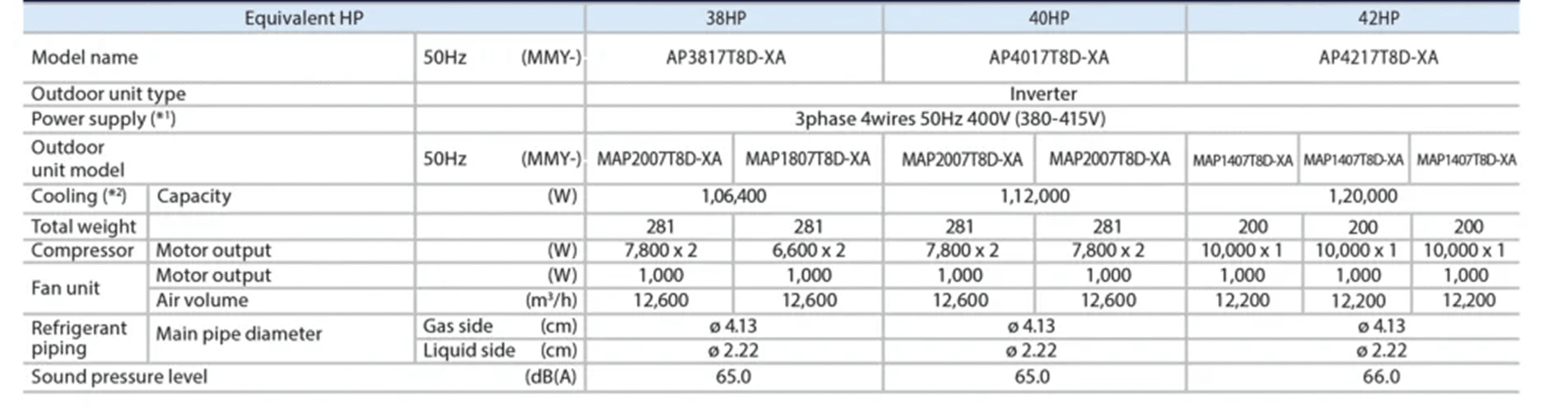

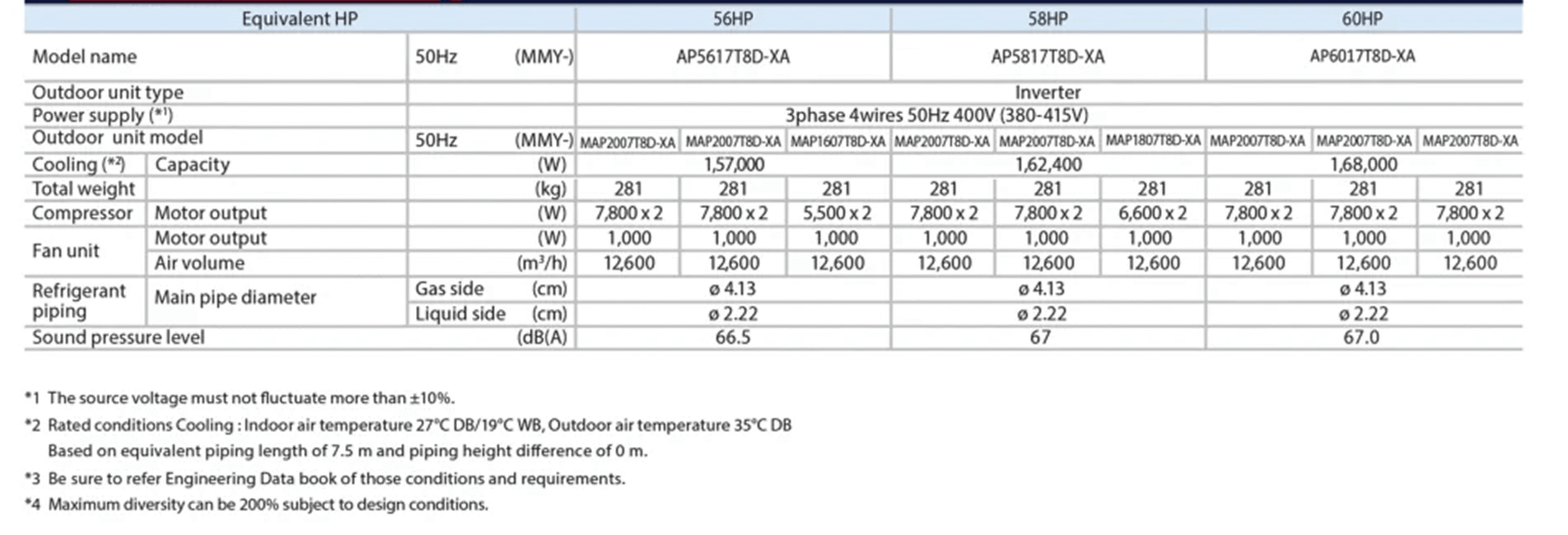

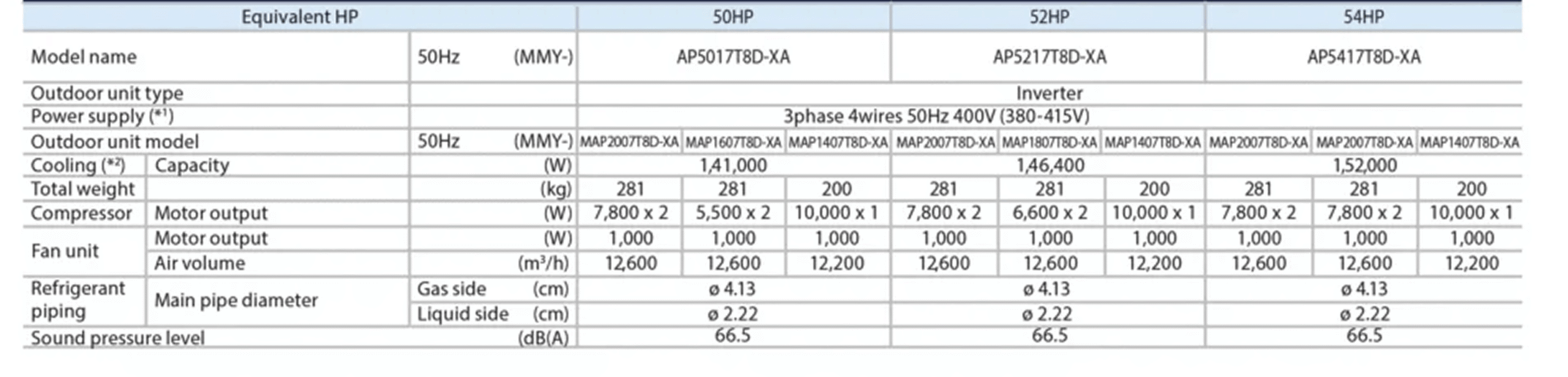

Specifications
Standard model (Single unit)
Standard model (Single unit)
Standard model (Combination)
Standard model (Single unit)
Standard model (Combination)
Standard model (Combination)
Standard model (Combination)
Standard model (Combination)
